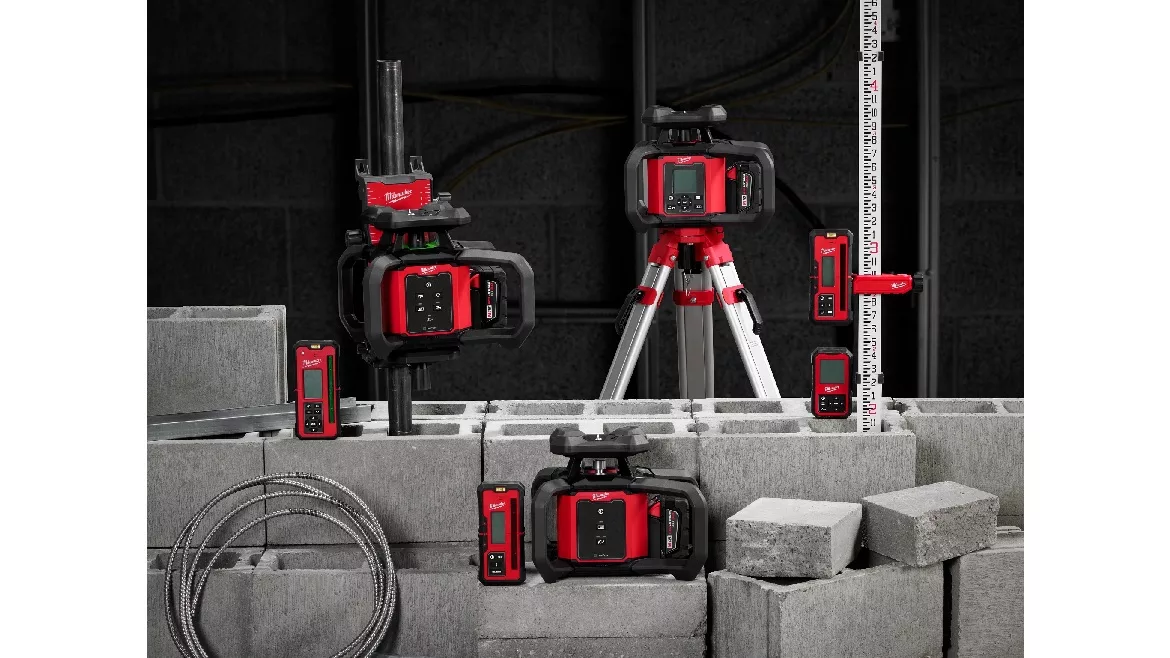

Milwaukee Tool continues to drive innovation within the layout category with the launch of three new M18 Rotary Lasers and two new accessories. These M18 Rotary Lasers are impact-protected with the ability to withstand 1 1/2-meter drops and 2-meter tripod tips and provide a simplified setup for users.

“Milwaukee Tool is building on our commitment to the laser category by expanding into the rotary laser space and delivering best-in-class solutions for our users,” said Kenan McCutcheon, product manager for Milwaukee Tool. “The M18 Red Exterior Rotary Laser, M18 Red Dual Slope Rotary Laser and M18 Green Interior Rotary Laser are designed to provide improved productivity and efficiency while being fully compatible with over 250+ solutions.”

M18 Red Exterior Rotary Laser

The M18 Red Exterior Rotary Laser delivers accurate results when leveling on the job site and features manual masking shutters, which block the laser in any desired direction to prevent interference with other lasers on the job site. The laser features precise accuracy at 3/32-inch at 100 feet and a simple one-button setup to help make the laser easy to use. The Milwaukee Red Exterior Rotary Laser Receiver detects the red laser line up to 2000 feet in diameter for quick and easy elevations. The durable rubber over-mold receiver housing allows it to withstand 2-meter drops, and the built-in strobe protection reduces interference from other light sources on the job site for consistent and accurate measurements.

M18 Red Dual Slope Rotary Laser

The M18 Red Dual Slope Exterior Rotary Laser is the ideal solution for leveling, aligning and squaring applications. The laser features fast, accurate grade match and can adjust slope remotely with a duplicated remote display. The 1/16-inch at 100 feet laser accuracy ensures precise measurements, and the M18 Red Dual Slope Rotary Laser receiver detects up to 4,000 feet in diameter for accurate slopes and elevations. The receiver’s durable rubber over-mold housing allows it to withstand 2-meter drops, and the built-in strobe protection reduces interference from other light sources on the job site for consistent and accurate measurements. The laser and included remote feature a simplified menu navigation and digital display for easy measurement readings.

M18 Green Interior Rotary Laser

The M18 Green Interior Rotary Laser features Center-Find for easy, fast and automatic long-range alignment. The green beam rotary laser features precise accuracy at 1/16-inch at 100 feet and the receiver can detect up to 1,000 feet in diameter. Large LED screens deliver clear visibility whether used indoors or outdoors. The Green Interior all-in-one remote receiver provides simplified menu navigation and built-in magnets for adaptable placement.

M18 Rotary Laser Accessories (Tripod and Wall Mount)

Milwaukee expands the rotary laser category lineup with the new rotary laser tripod and wall mount. With a durable aluminum design, the Milwaukee rotary laser tripod withstands more impacts and tips on the job site. The smoother height adjustment allows the legs to be quickly adjusted and delivers an easier setup in any environment. The rotary wall mount provides the fastest mounting with a single-dial setup and mounting capability on flat, vertical or horizontal materials.

Specifications

M18 Red Exterior Rotary Laser Kit (3701-21 and 3701-21T)

• Working range with receiver: 2000 feet
• Accuracy: 3/32-inch at 100 ft
• Self-leveling range: +/- 5 degrees
• Self-leveling orientation: horizontal
• IP rating: IP 66
• RPM: 600
• Drop rating: 1.5 meters
• Mount threading: 5/8-inch - 11
• Runtime: 70+ hours with M18 XC 3.0 battery
• Laser class: Class 2
• Receiver compatibility: 3711
• Five-year tool warranty, three-year battery warranty and two-year receiver warranty

The 3701-21 kit costs $1,199 and includes a laser, receiver, receiver clamp, M18 dual charger, M18 3.0 XC battery, two AA alkaline batteries and a carrying case.

The 3701-21T kit costs $1,399 and includes a laser, receiver, receiver clamp, rotary laser tripod, grade rod, M18 dual charger, M18 3.0 XC battery, two AA alkaline batteries and a carrying case.

M18 Red Dual Slope Rotary Laser Kit (3704-21 and 3704-21T)

• Working range with receiver: 4,000 feet in diameter
• Receiver and remote communication range: 328 feet
• Horizontal accuracy: +/- 1/16-inch at 100 feet
• Vertical accuracy: +/- 1/8-inch at 100 feet
• Self-leveling range: +/- 5 degrees
• Self-leveling orientation: horizontal and vertical
• RPM: 600, 900 and 1200
• IP rating (tool only): IP 66
• Mount threading: 5/8-inch - 11
• Runtime: 40+ hours with M18 XC 3.0 battery
• Laser class: Class 2
• Five-year tool warranty, three-year battery warranty and two-year receiver warranty

The 3704-21 kit costs $1,199 and includes a laser, receiver, receiver clamp, M18 dual charger, M18 3.0 XC battery, two AA alkaline batteries and a carrying case.

The 3704-21T kit costs $2,199 and includes a laser, receiver, receiver clamp, rotary laser tripod, grade rod, M18 dual charger, M18 3.0 XC battery, two AA alkaline batteries and a carrying case.

M18 Green Interior Rotary Laser Kit (3702-21)

• Working range: 1000 feet
• Communication range: 328 feet
• Horizontal accuracy: 1/16-inch at 100 feet
• Vertical accuracy: 1/8-inch at 100 feet
• Self-leveling range: +/- 5 degrees
• Self-leveling orientation: horizontal and vertical
• RPM: 300, 600 and 1200
• IP rating: IP 66
• Mount threading: 5/8-inch - 11
• Runtime: 26 hours with M18 XC 3.0 battery
• Laser class: Class 2
• Five-year tool warranty, three-year battery warranty and two-year receiver/remote warranty

The kit costs $1,999 and includes a laser, receiver/remote combo, wall mount, receiver clamp, M18 dual charger, M18 3.0 XC battery, two AA alkaline batteries and a carrying case.

Accessories

The Rotary Laser Tripod (48-35-3700) costs $99 and has a three-year warranty.

The Rotary Laser Wall Mount (48-35-3702) costs $159 and has a three-year warranty.
